Since 1979
Hawers is a manufacturer of industrial Clutches and Brakes
in south Korea.

DTCB type

DTCB type

DTCB type is a clutch and brake combined structure which is installed on a shaft line. There are two air-holes (one for clutch, one for brake), clutch and brake are operated through each air-hole by air pressure.

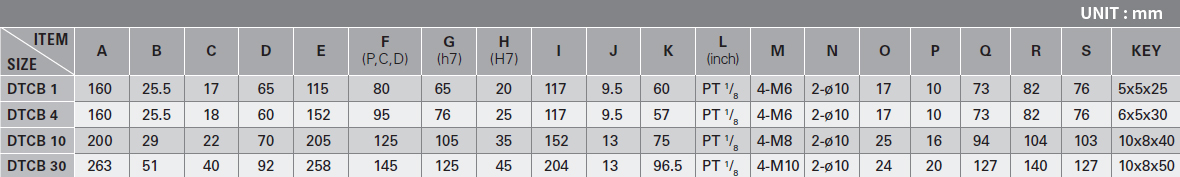

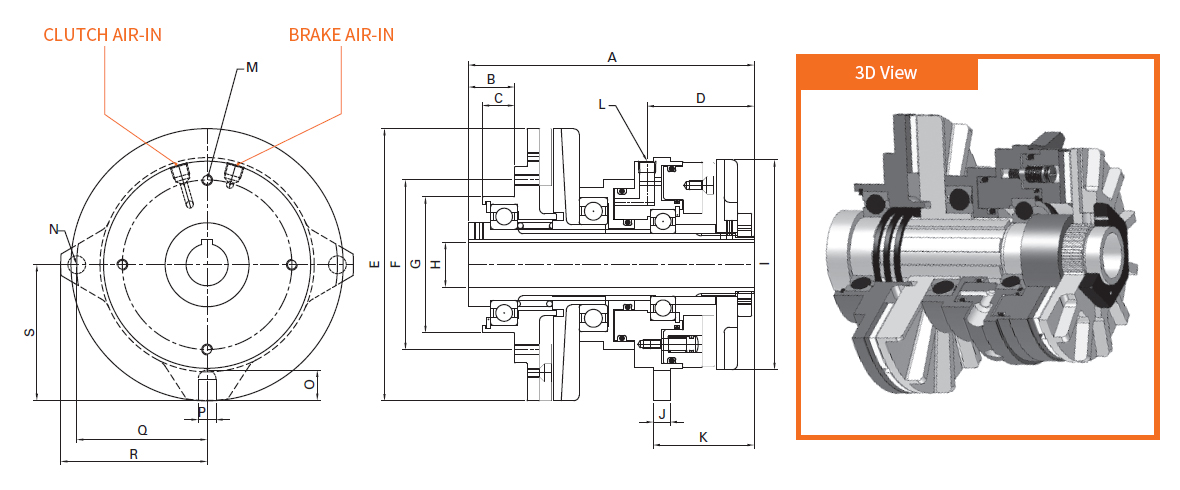

· DTCB Dimensions

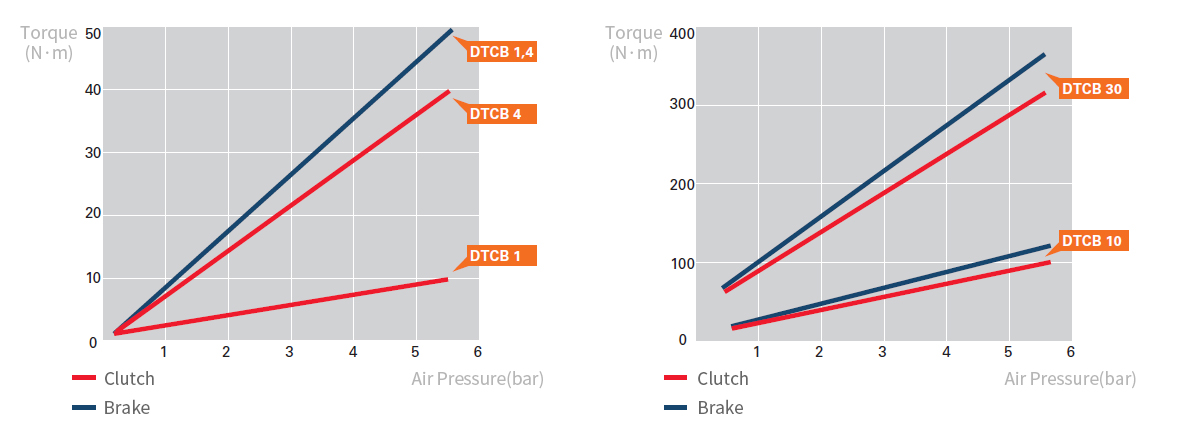

· Correlation between air pressure and torque

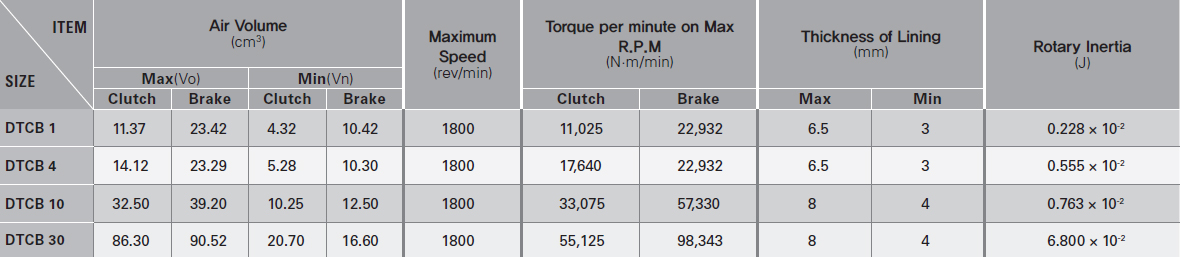

· Technical data
· New lining thickness is maximum, if the thickness become minimum should be changed.
