SH type

SH type

The SH type can be engaged with a inside drum by pneumatically actuated tube with linings.

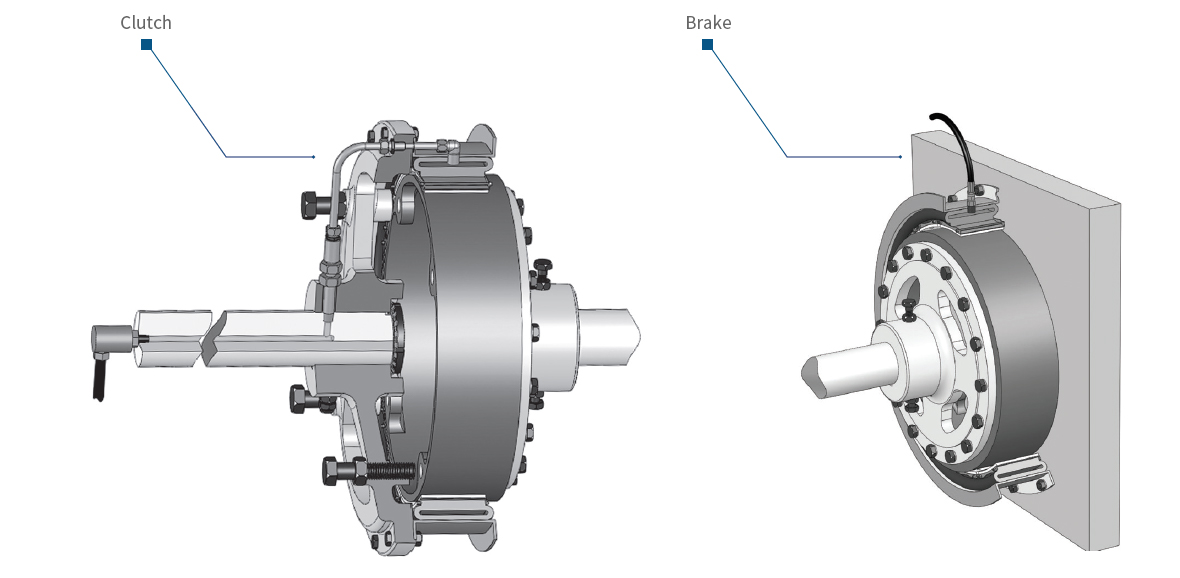

It can be applied to Clutches(power transmission) or Brakes(power braking).

· Applications

- Industries : Shearing, Press, Forming, Tester, etc
- Marines : Generator, Pump, Winch, etc.

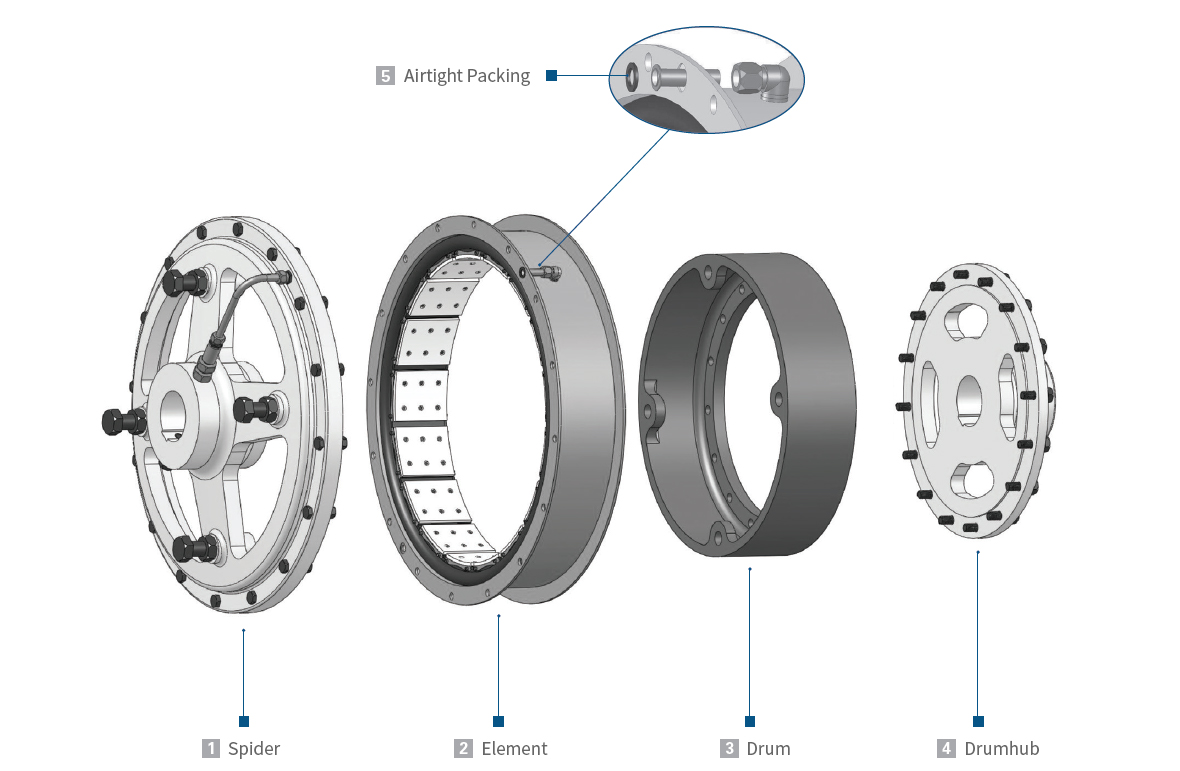

· Parts
· Assembly
· One side and both side flange

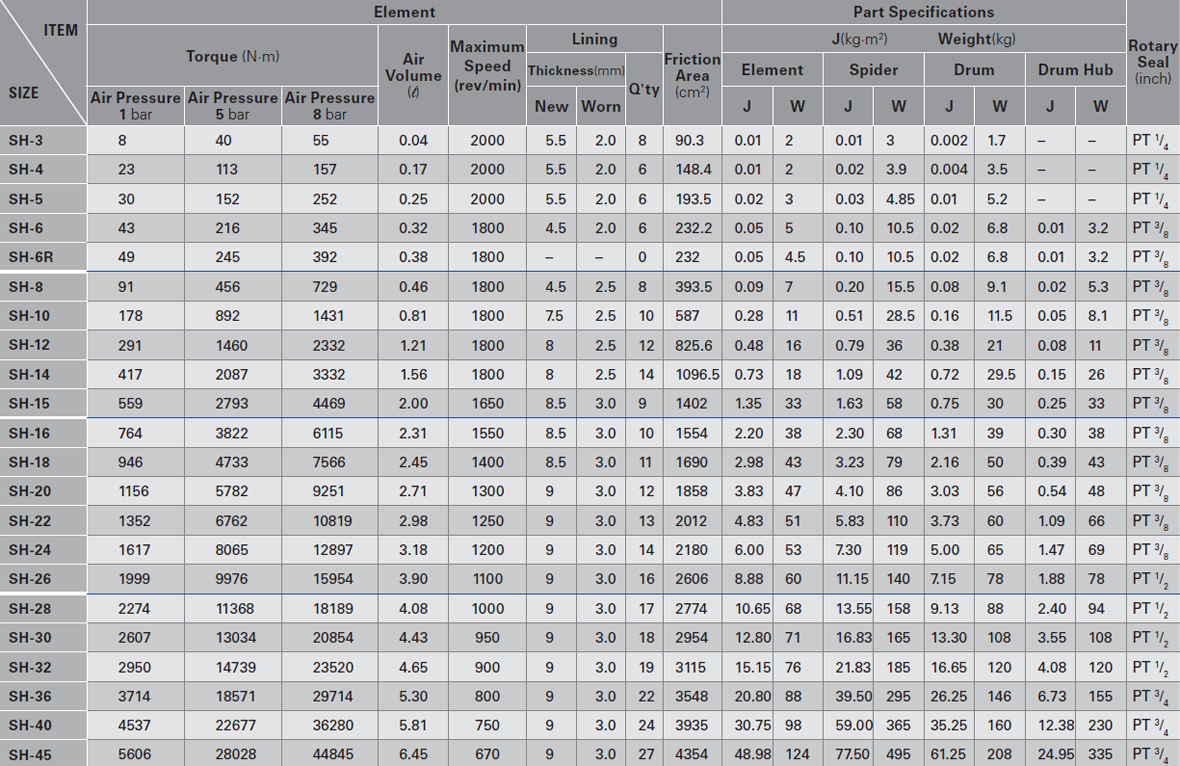

· Technical data
· Products application

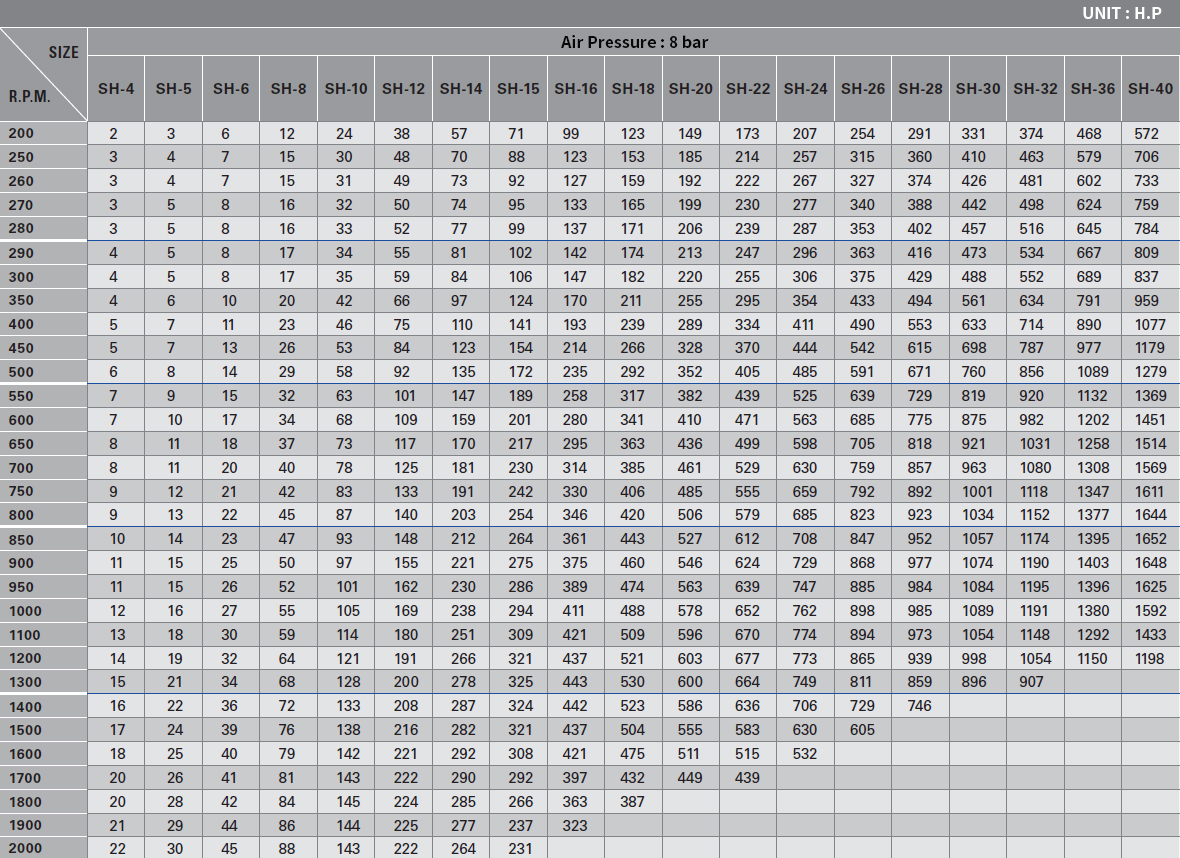

· Directions of above guide

To select right clutch size, should figure out R.P.M. of using machine and H.P(Horse Power) including Safety Factor(Table1).
Then, first find out the R.P.M. and nearest value to the H.P from the above guide.
Finally, choose the clutch size of the top of the column.
ex) In case of 400 H.P(included safety factor) x 500 R.P.M., find out 405H.P in 500R.P.M. line, then choose SH-22 size of the top of the column.

Safety Factor(K) Pumps Sand Pump Gernerators Generator of Fish Luring Light Winches
1.5 ~ 1.8 2.5 ~ 3.0 1.8 ~ 2.0 2.5 ~ 3.0 1.8 ~ 2.0
· SH Drawings

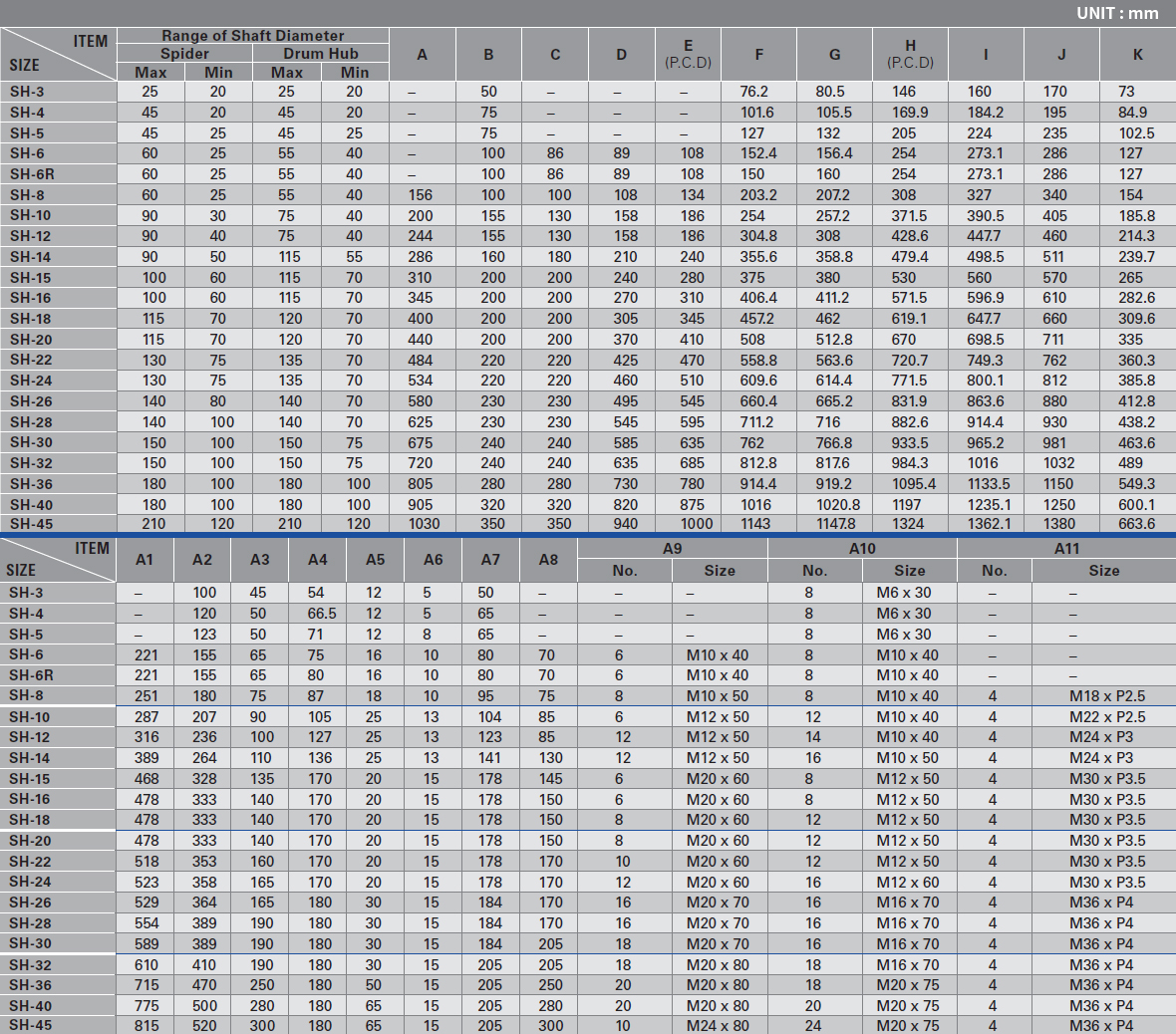

· SH Dimensions
