HAWERS CO,.LTD.

HACB type

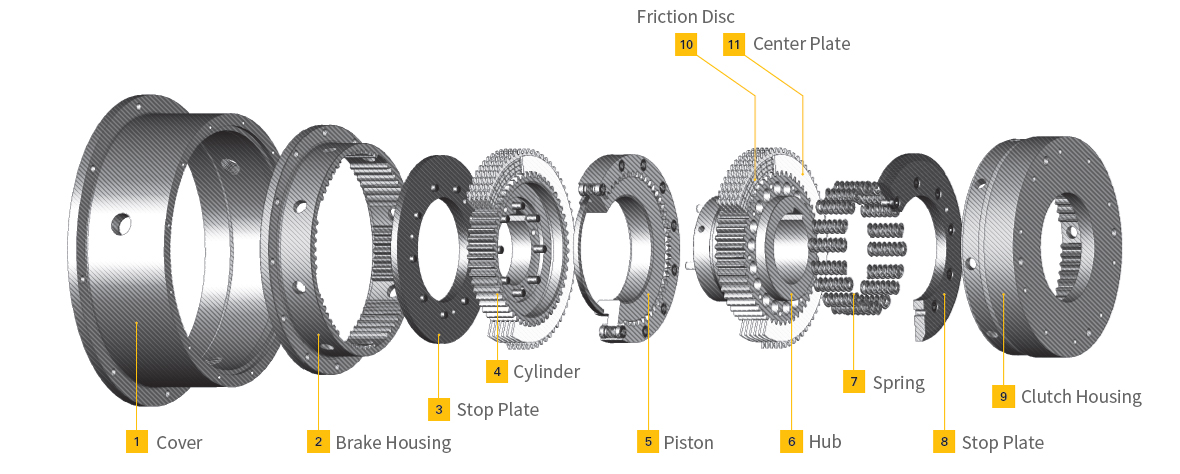

Hydraulically actuated clutch and spring-set released brake combined type.

· Class

- Normal torque - Friction plates between clutch and brake quantities are same.
- Clutch high torque - Reinforced clutch with friction plates addition.
- Brake high torque - Reinforced brake with friction plates addition.
- Clutch and Brake high torque together - Reinforced clutch and brake with friction plates addition.

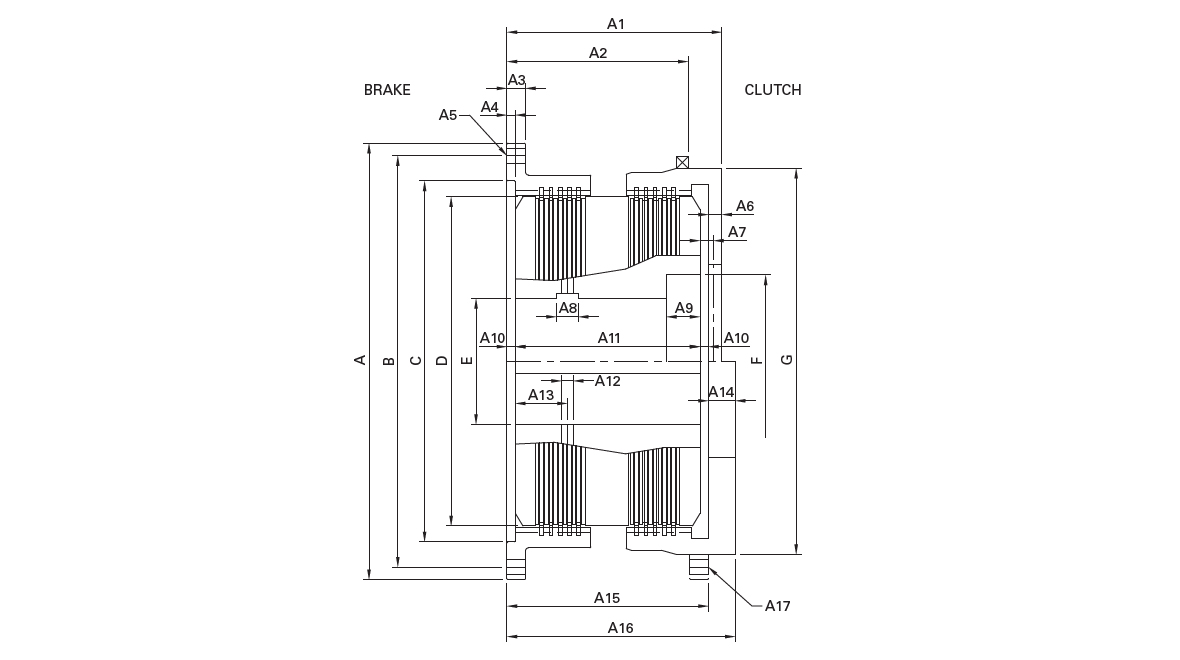

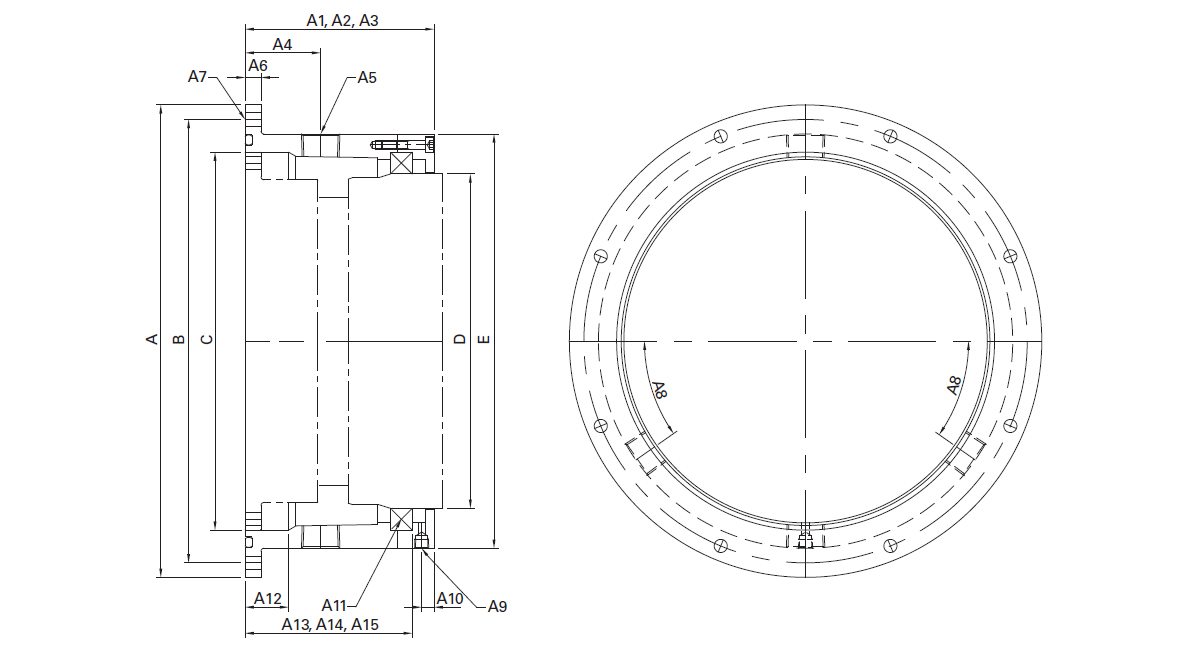

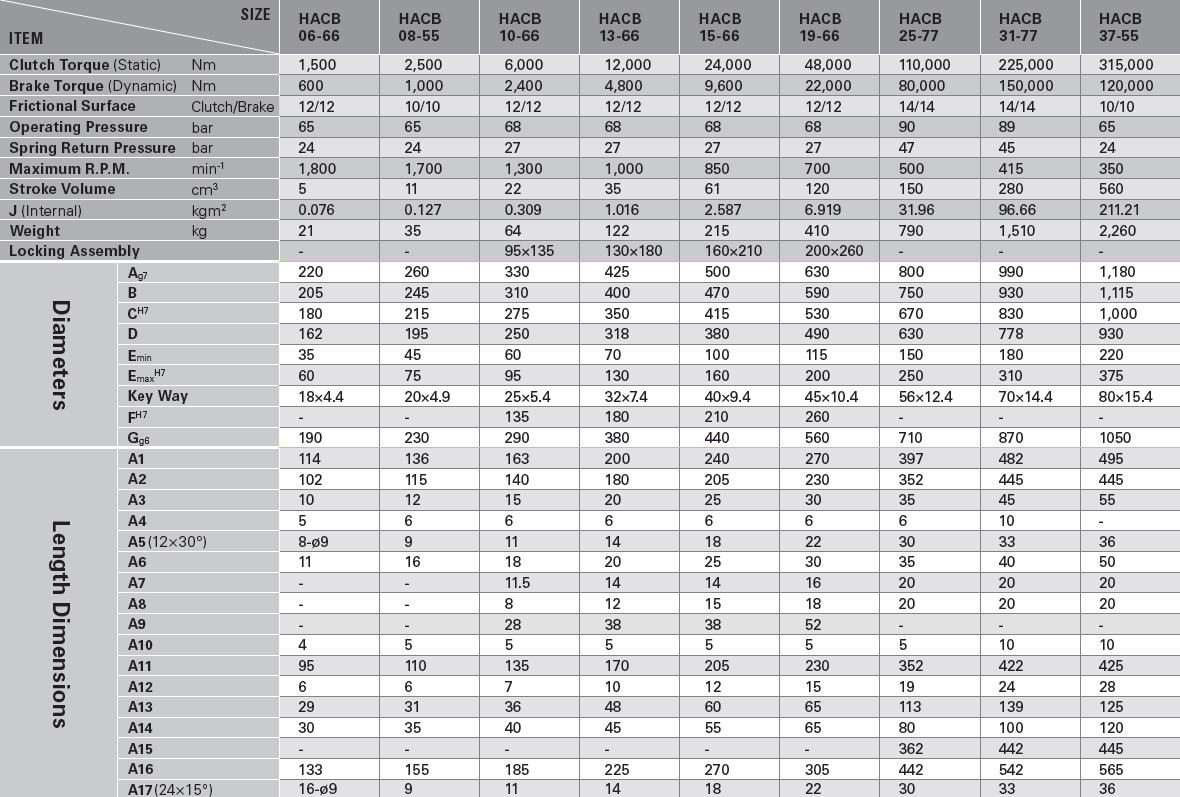

· HACB(NORMAL TORQUE) Drawings

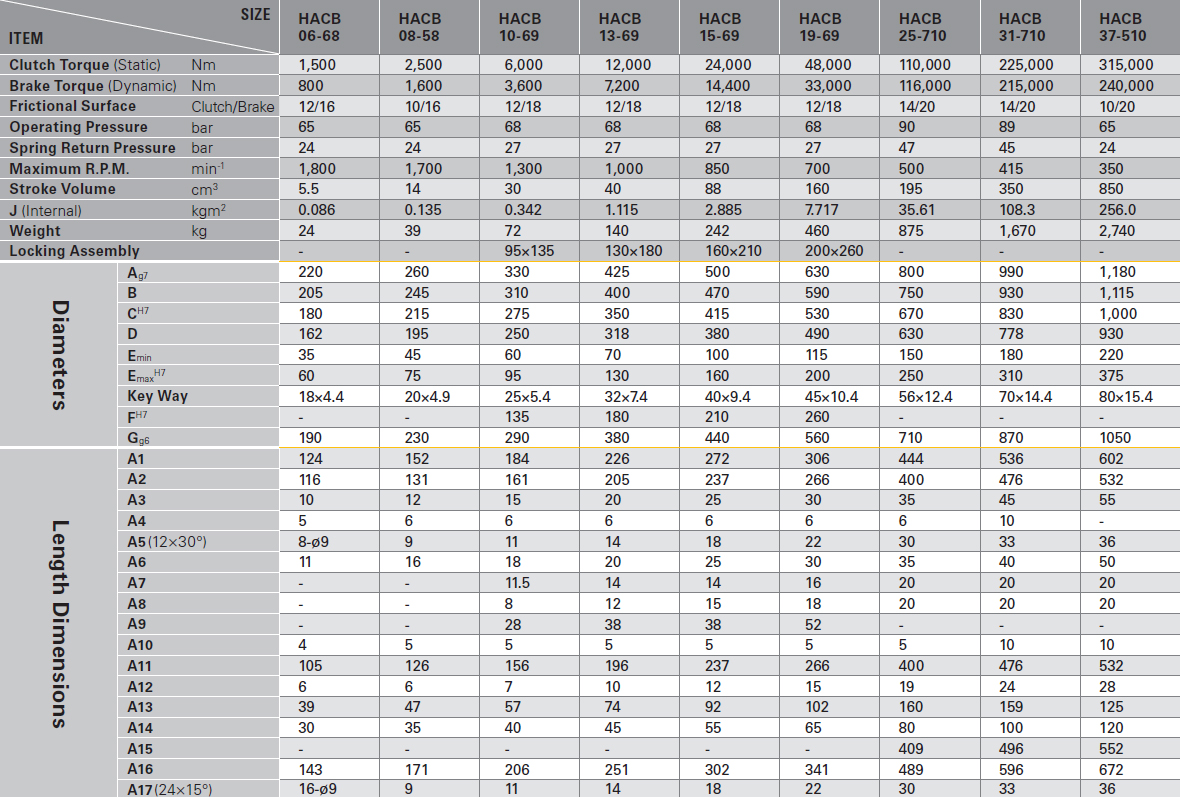

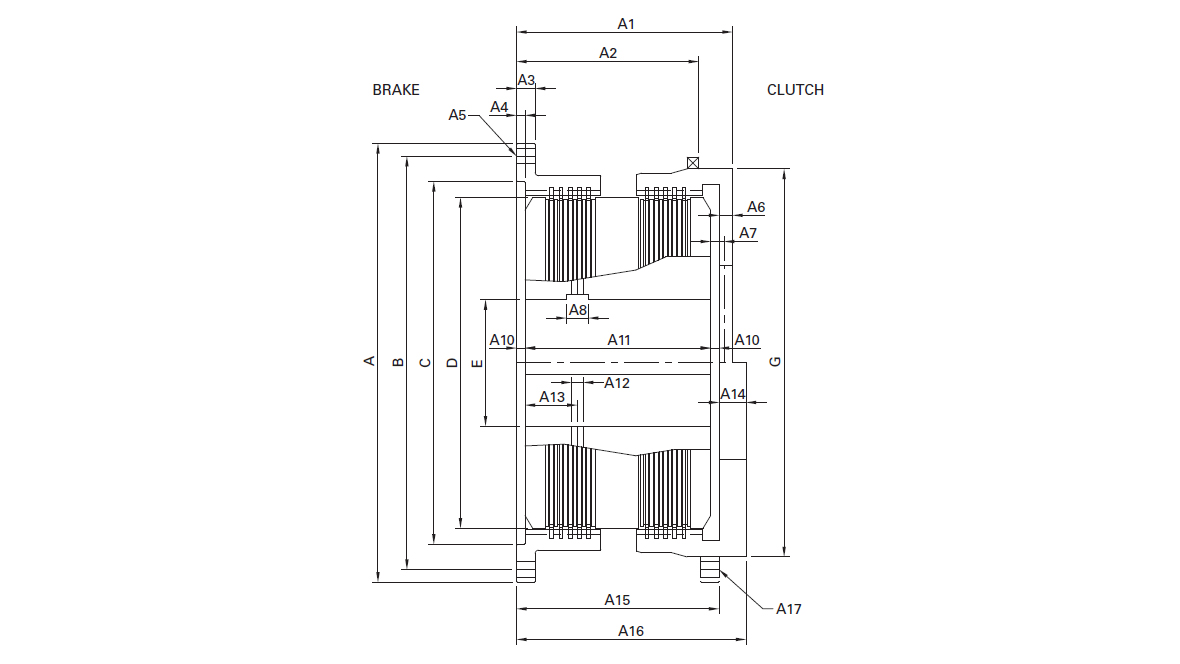

· HACB(CLUTCH HIGH TORQUE) Drawings

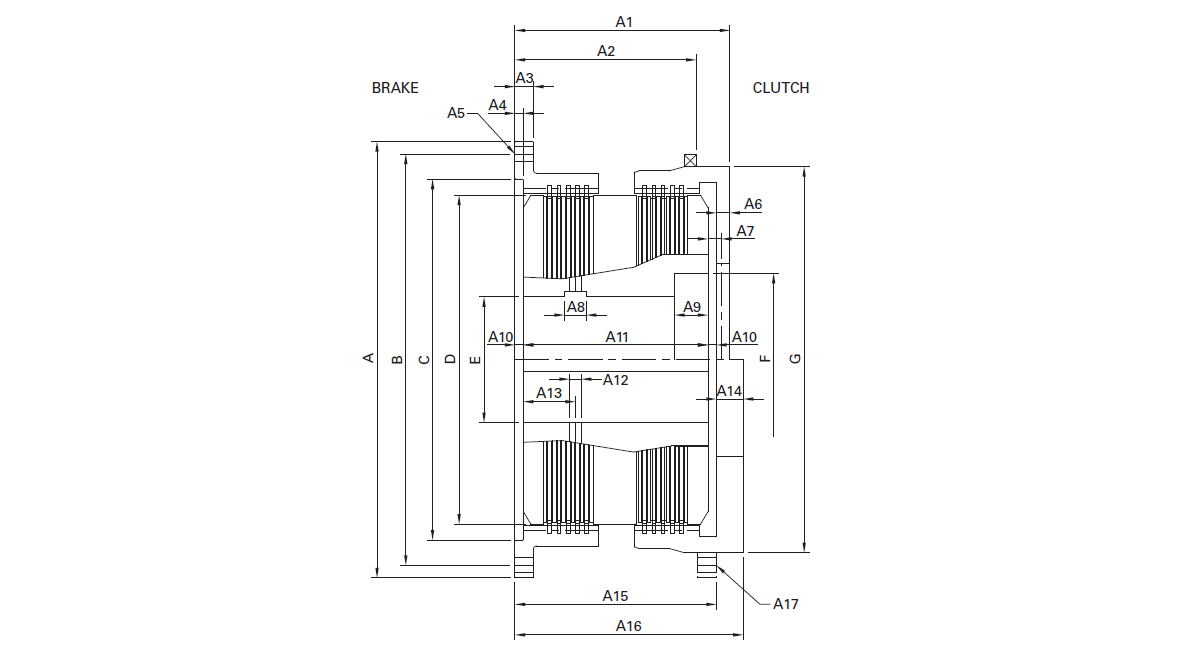

· HACB(BRAKE HIGH TORQUE) Drawings

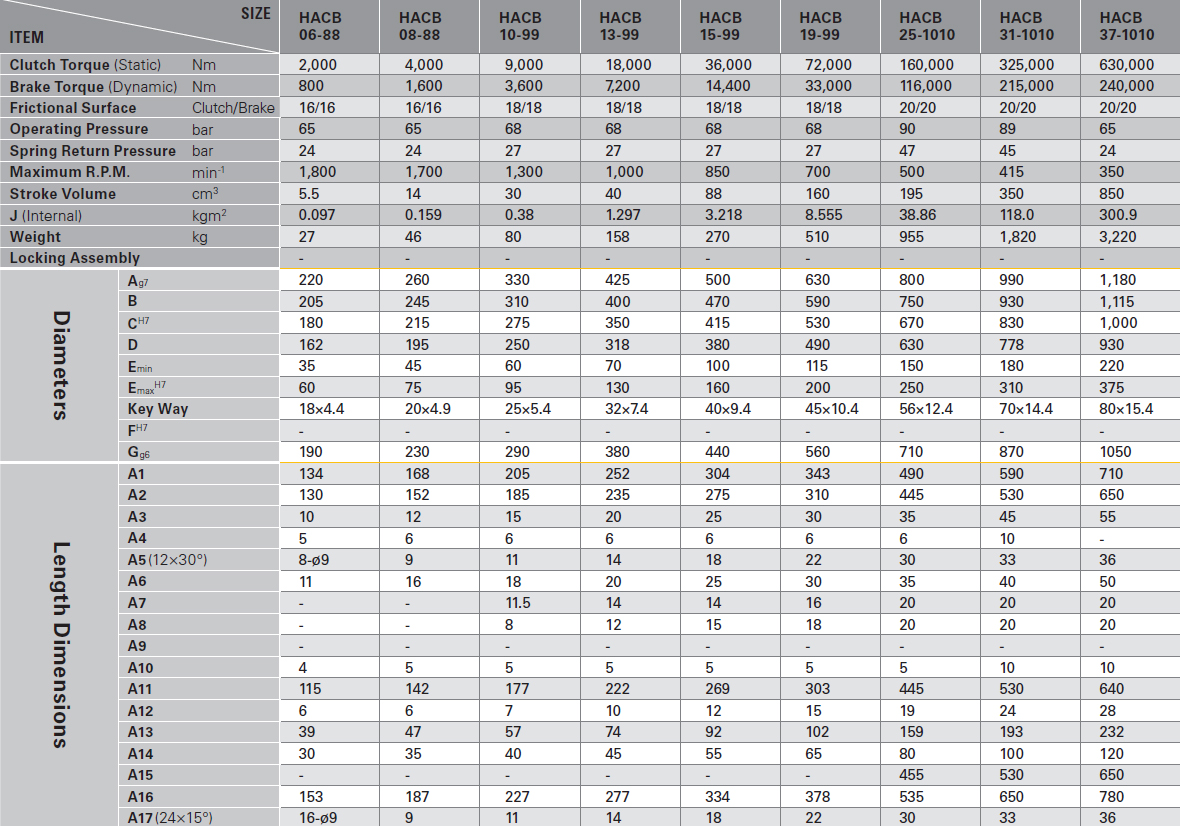

· HACB(CLUTCH & BRAKE HIGH TORQUE) Drawings

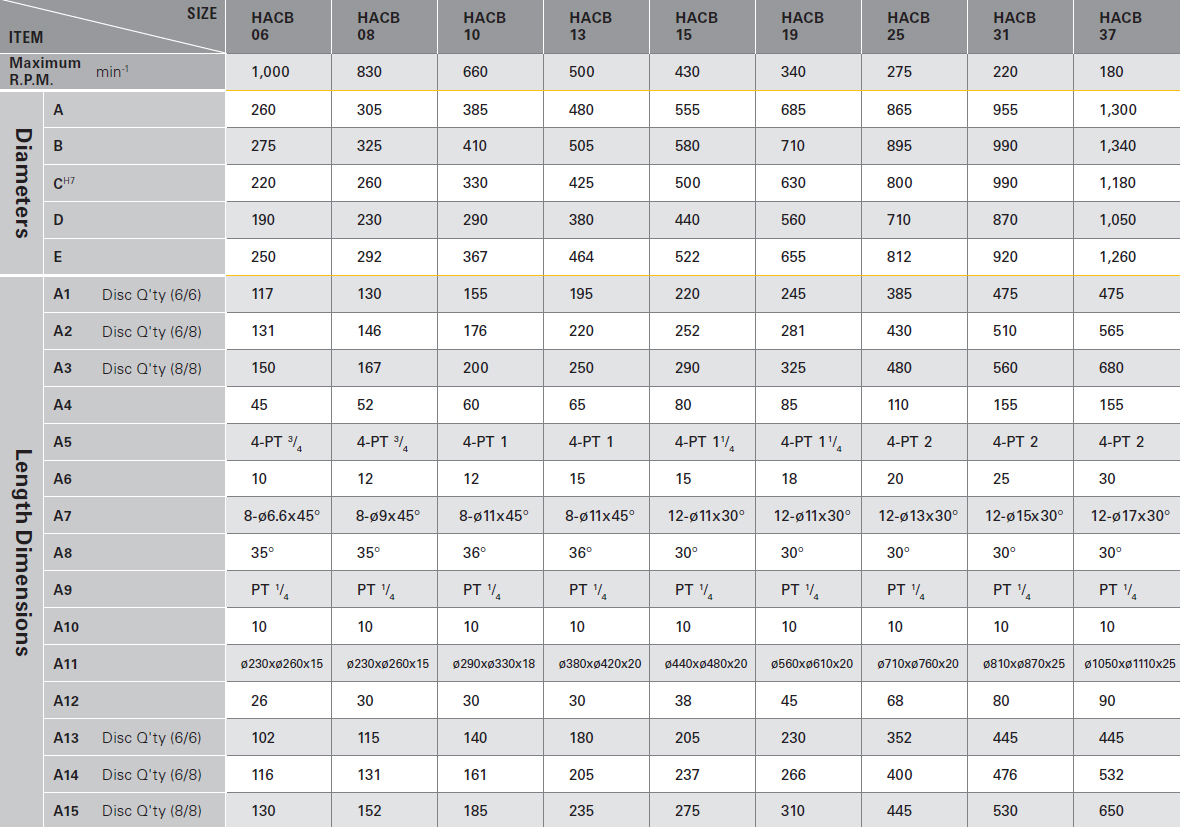

· HACB(OUTER COVER) Drawings

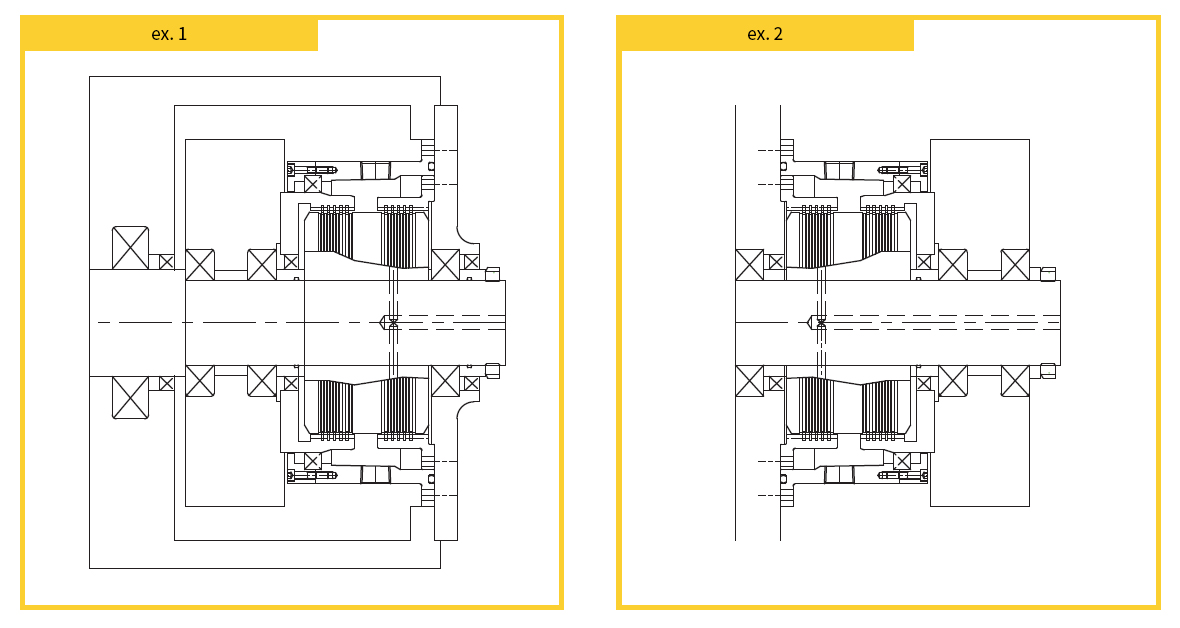

· HACB Application examples

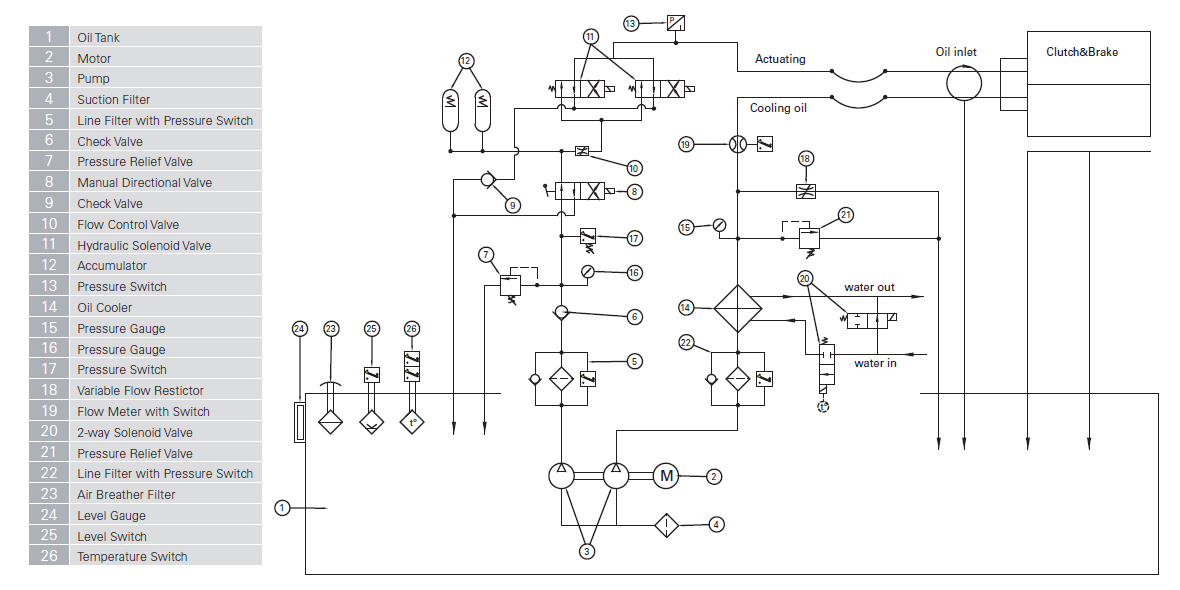

· Recommended hydraulic unit circuit
